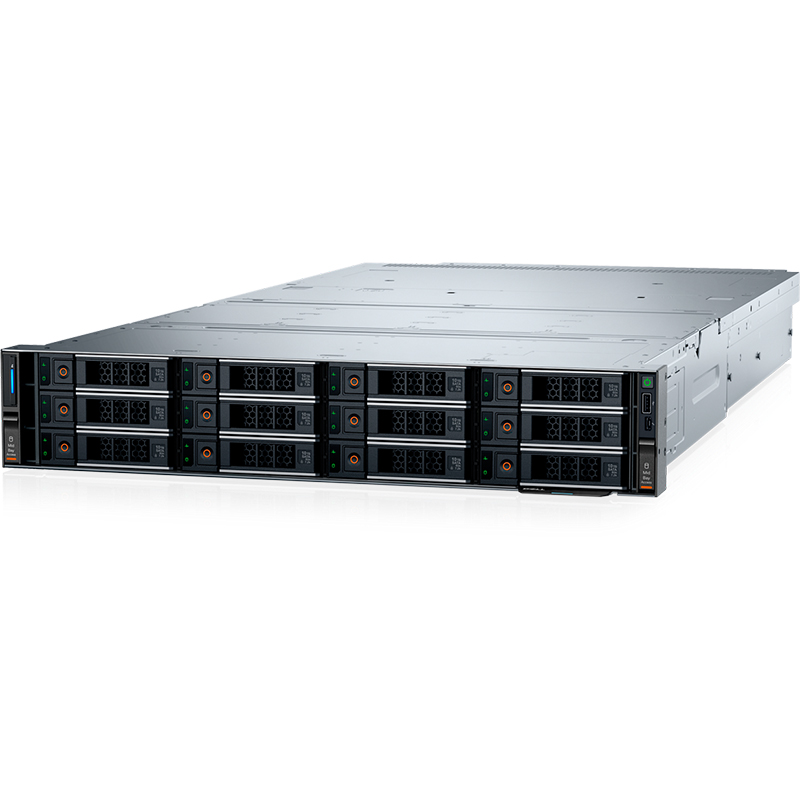

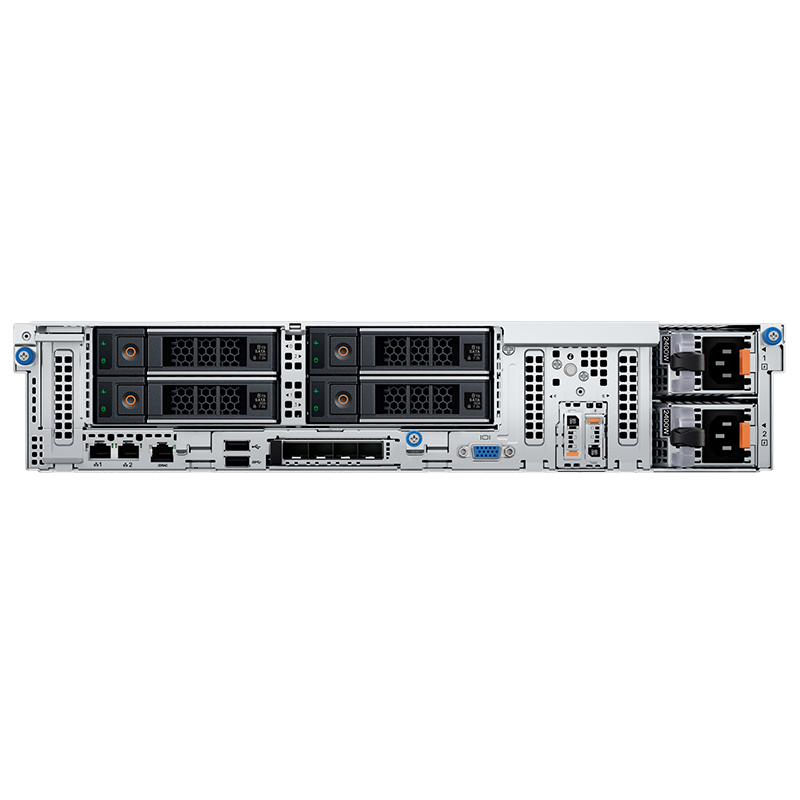

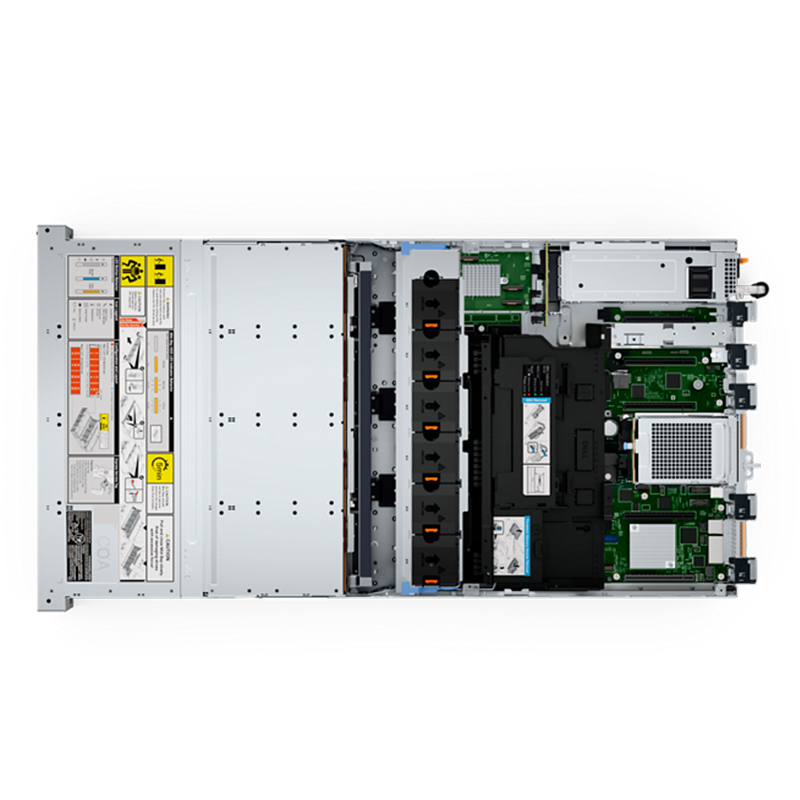

| Server Model | Dell EMC PowerEdge R760XD2 |
| Processor | Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and with optional Intel® QuickAssist Technology |
| RAM | Up to 16 DDR5 RDIMMs (up to 1TB supported) NVDIMM No DIMM Speed: up to 4800 MT/S |
| Storage Controllers | • Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB • External HBA (non-RAID): HBA355e • Software RAID: S160 |
| Drive Bays | Front bays: • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB |
| Power Supplies | • 2800 W Titanium / 2400 W Platinum / 1800 W Titanium / 1400 W Platinum / 1100 W Titanium / 1100 W LVDC / 800 W Platinum / 700 W Titanium (Hot swap redundant) |
| Dimensions | • Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 772.13 mm with bezel / 758.29 mm without bezel |
| Management | iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, Quick Sync 2 wireless module |
| GPU Options | Up to 2 x 350 W DW and 6 x 75 W SW |
| PCIe | Up to eight PCIe slots (Gen5 and Gen4 options supporting various heights and lengths) |
| Warranty | 3 Years |
Meet your growing unstructured data needs with object storage technology designed to be easily configurable, serviceable, and scalable. This 2U, 2 socket server is ideal for file and object storage, video capture/retrieval, and content delivery networks.
As a leading integrated IT solutions provider, we combine cutting edge manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive infrastructure services. Our expertise includes designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide. We provide authorized solutions for:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
