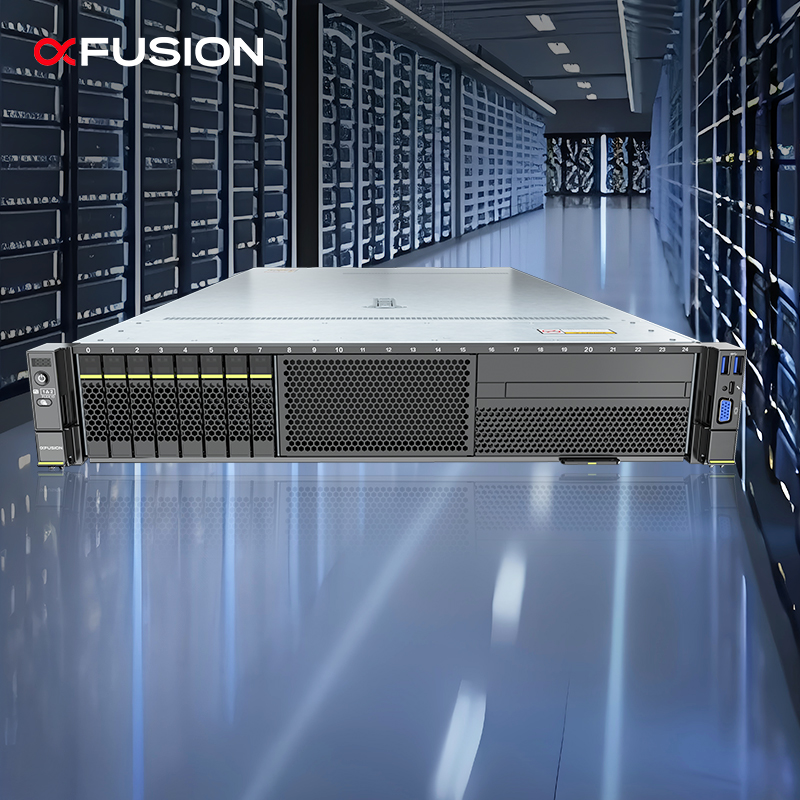

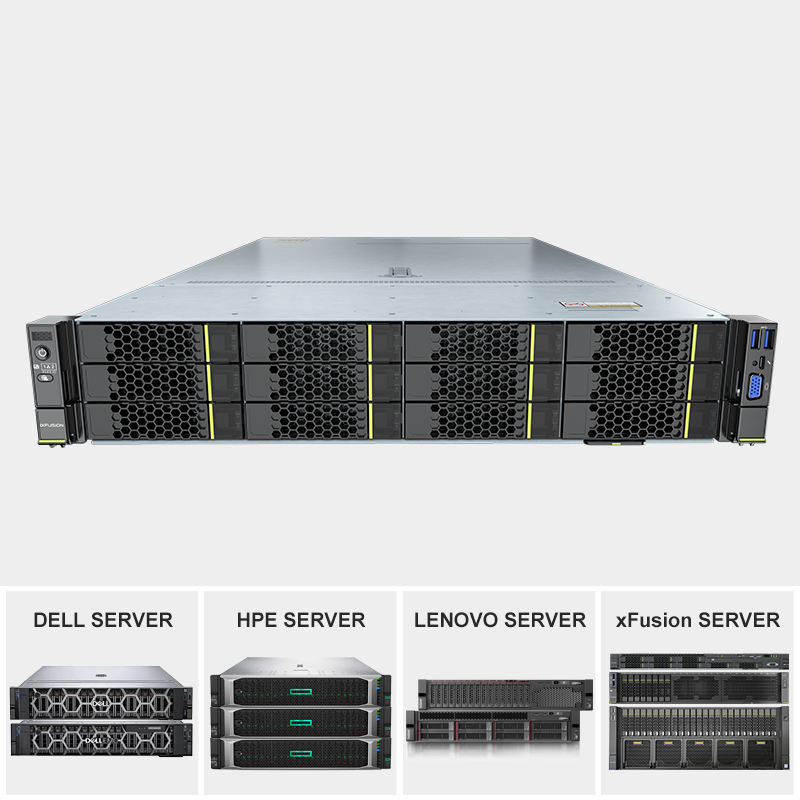

FusionServer 2288H V6 2U Rack Server
The FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads. The 2288H V6 can be configured with 2-socket Intel® Xeon® Scalable processors, 32 DDR4 RAM, 14 PCIe expansion slots, and supports large local storage resources.
It integrates patented technologies such as DEMT, intelligent power consumption management, FDM intelligent fault management, and optional FusionDirector full lifecycle management software, which can effectively reduce operations cost and improve return on investment.

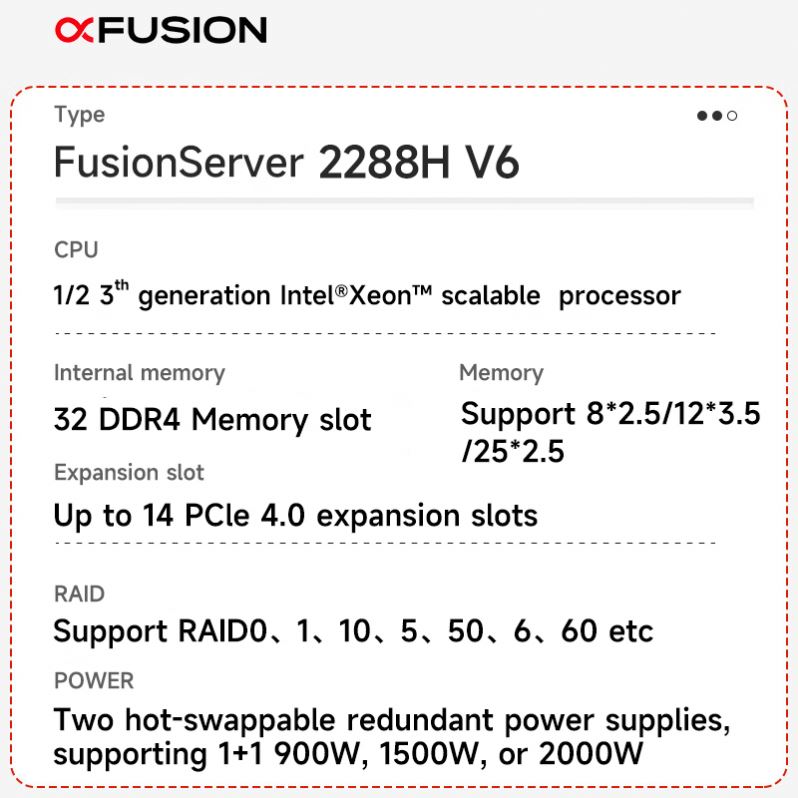

| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage | Supports various drive configurations: 8-31 x 2.5-inch SAS/SATA/SSD; 12-20 x 3.5-inch SAS/SATA; 4/8/16/24 NVMe SSDs; Dual M.2 SSDs |

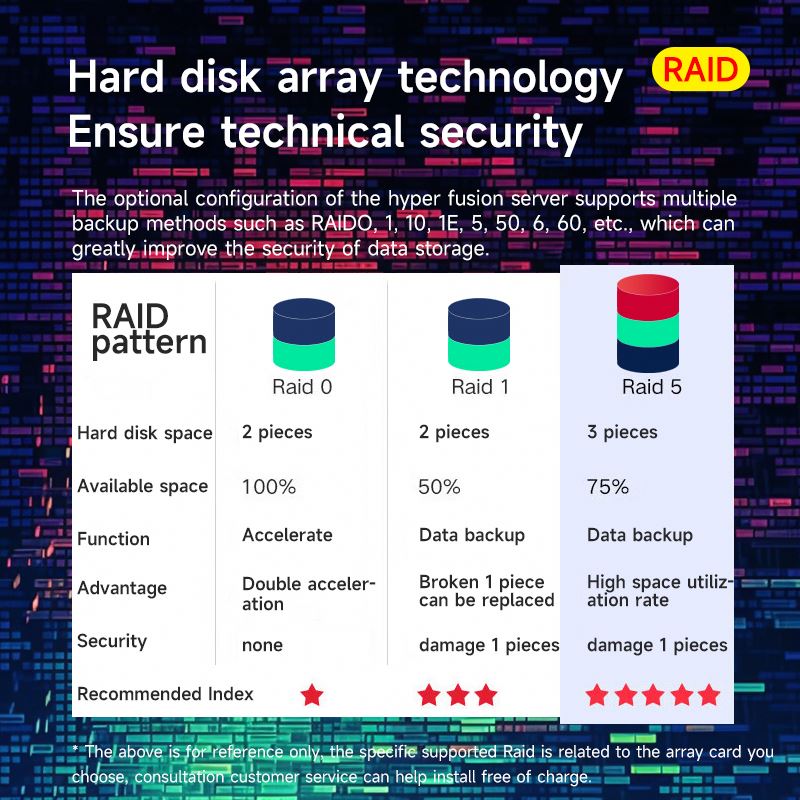

| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data protection |
| Network | OCP 3.0 NICs; two FlexIO card slots support two OCP 3.0 network adapters; Hot swappable |
| PCIe Expansion | Max fourteen PCIe 4.0 slots (including one dedicated for RAID card, two for OCP 3.0) |
| Chip Set | Intel C621A |
| Management | iBMC chip integrates one GE management port; Supports Redfish, SNMP, IPMI 2.0; Optional FusionDirector software |
| Operating Systems | Windows Server, SUSE Linux, VMware ESXi, Red Hat, CentOS, Oracle, Ubuntu, Debian |
| Security Features | Power-on password, administrator password, TPM 2.0, secure boot, cover opening detection |
| Fan Modules | Four hot-swappable counter-rotating fan modules in N+1 redundancy mode |
| Height X Width X Depth | 86.1 mm x 447 mm x 790 mm |
| Power Supply Units | Two hot-swappable PSUs (1+1 redundancy); Options include 900W, 1200W, 1500W, 2000W, 3000W Platinum/Titanium |
