New xFusion Fusionserver 2288H V6 Computer Server 8x2.5-Inch Drive Xeon 4310*2 2288H V6 2U 2-socket Rack Server

Product Description

💎 Product Display

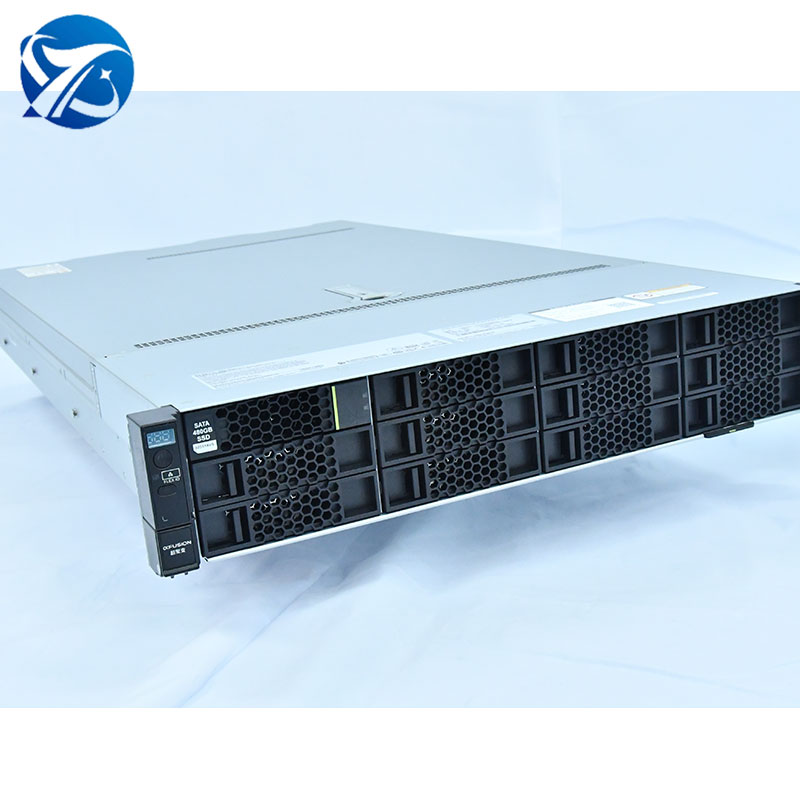

FusionServer 2288H V6 2U rack server. The FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads. The 2288H V6 can be configured with 2-socket Intel® Xeon® Scalable processors, 32 DDR4 RAM, 14 PCIe expansion slots, and supports large local storage resources. It integrates patented technologies such as DEMT, intelligent power consumption management, FDM intelligent fault management, and optional FusionDirector full lifecycle management software, which can effectively reduce operations cost and improve return on investment.
🔍 Product Description
FusionServer 2288H V6 Description
📊 Product Parameters
Server Model FusionServer 2288H V6
Form Factor 2U rack server
Processors One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W
Local Storage Supports various drive configurations and hot swappable:
• 8-31 x 2.5-inch SAS/SATA/SSD drives
• 12-20 x 3.5-inch SAS/SATA drives
• 4/8/16/24 NVMe SSDs
• 45 x 2.5-inch drives or 34 full-NVMe SSDs
Supports flash storage: Dual M.2 SSDs
RAID Support Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration.
Network Provides expansion capability of multiple types of networks. Provides OCP 3.0 NICs. The two FlexIO card slots support two OCP 3.0 network adapter respectively. Hot swappable function supported.
PCIe Expansion Provides a maximum of fourteen PCIe 4.0 slots, including one PCIe slot dedicated for RAID card, two FlexIO card slots dedicated for OCP 3.0, and eleven PCIe 4.0 slots for standard PCIe cards.
Chip Set Intel C621A
Management The iBMC chip integrates one dedicated GE management port to provide comprehensive management functions. Supports Redfish, SNMP, and IPMI 2.0; remote management UI based on HTML5/VNC KVM. (Optional) FusionDirector management software for five intelligent technologies.
Operating Systems Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, etc.
Security Features Power-on password, administrator password, TPM 2.0, security panel, secure boot, and cover opening detection.
Fan Modules Four hot-swappable counter-rotating fan modules in N+1 redundancy mode
Height X Width X Depth 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10in.)
Power Supply Units Two hot-swappable PSUs in 1+1 redundancy mode. Options: 900W, 1500W, 2000W, 3000W AC Platinum/Titanium, 1500W HVDC, 1200W -48V to -60V DC.
Hardware Detail 1
Hardware Detail 2
🏢 Company Profile
Company Overview
As a leading integrated IT solutions provider, we combine cutting edge in house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end to end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers holding top tier certifications, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide. As authorized partners for major brands, we provide:
  • Computing servers
  • Network storage
  • Network switches
  • CPU, RAM, HARD DRIVES, and other accessories
🌐 Exhibition & Packing
Exhibition
Packing Service
Delivery Preparation
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: When can I get the quotation?
We usually quote within 24 hours after receiving your inquiry. If you are in a hurry, please inform us by email or telephone, and we will give priority to your inquiry.
Q2: Why choose your hardware solutions?
Quality and reputation are our main concerns. Our whole machine products provide a 3-year replacement warranty. All memories are original brand chips, strictly tested before delivery. We accept various secure payment methods to eliminate your concerns.
Q3: What is the minimum order quantity (MOQ)?
Different products have different MOQ. Let us know your requirements and we will try our best to meet them. Small orders are also popular.
Q4: How do you handle price competition with local markets?
We specialize in this line for many years. We focus on internal quality and long-term business stability. While products may look similar externally, the internal components and reliability levels justify the professional pricing.
Q5: What operating systems are supported by the FusionServer 2288H V6?
It supports a wide range of platforms including Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, and Debian.
Q6: Are the power supplies hot-swappable?
Yes, the server supports two hot-swappable PSUs in 1+1 redundancy mode, ensuring continuous operation even during power module maintenance or failure.
